OM Series Flowmeter - OM006S511-826R7

OM Series Flowmeter - OM006S511-826R7

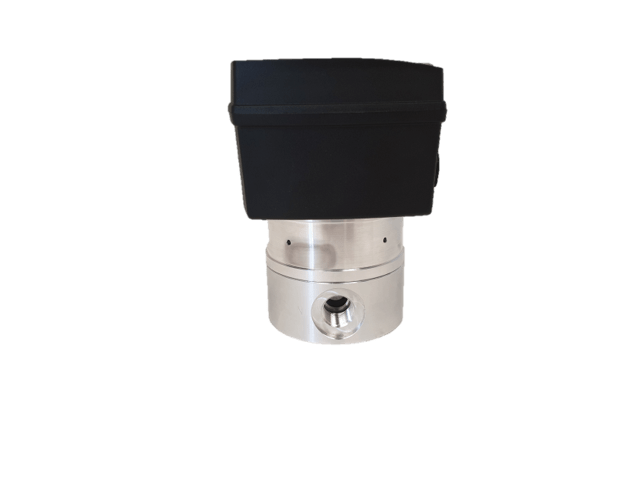

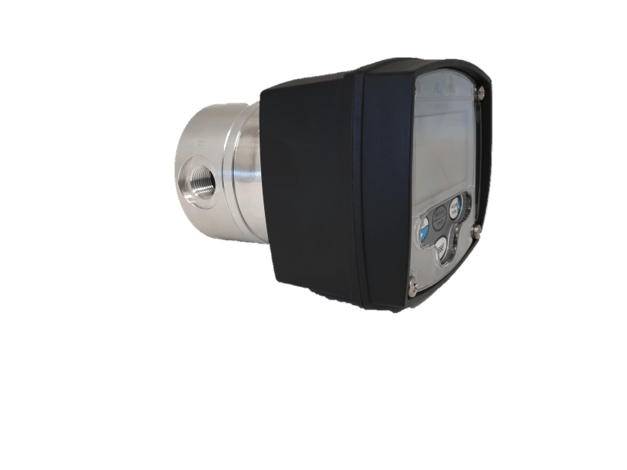

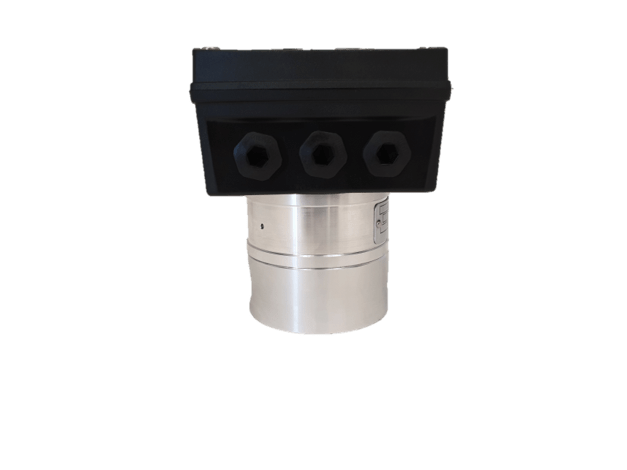

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM006S511-826R7 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs. The OM006S511-826R7 flowmeter comes fitted with a FLOMEC® RT40 Rate Totaliser. The perfect display for users who require a simple local display with no output signals. The RT40 features a large dual-line backlit LCD, which provides optimal readability from a distance or in low-light conditions.
Product comes calibrated with standard calibration certificate.

Specifications

Series: OM Oval Gear

Model: 1/4"

Body Material: 316L Stainless Steel Body

Rotor Material: Stainless steel Rotors with Carbon Ceramic Bearings

O-Ring Material: Viton O-Ring

Temperature Limits: 80°C

Process Connections: NPT female threaded

Cable Entries: 3 x 16mm drilled holes

Integral Options: RT40 rate totaliser with GRN housing
